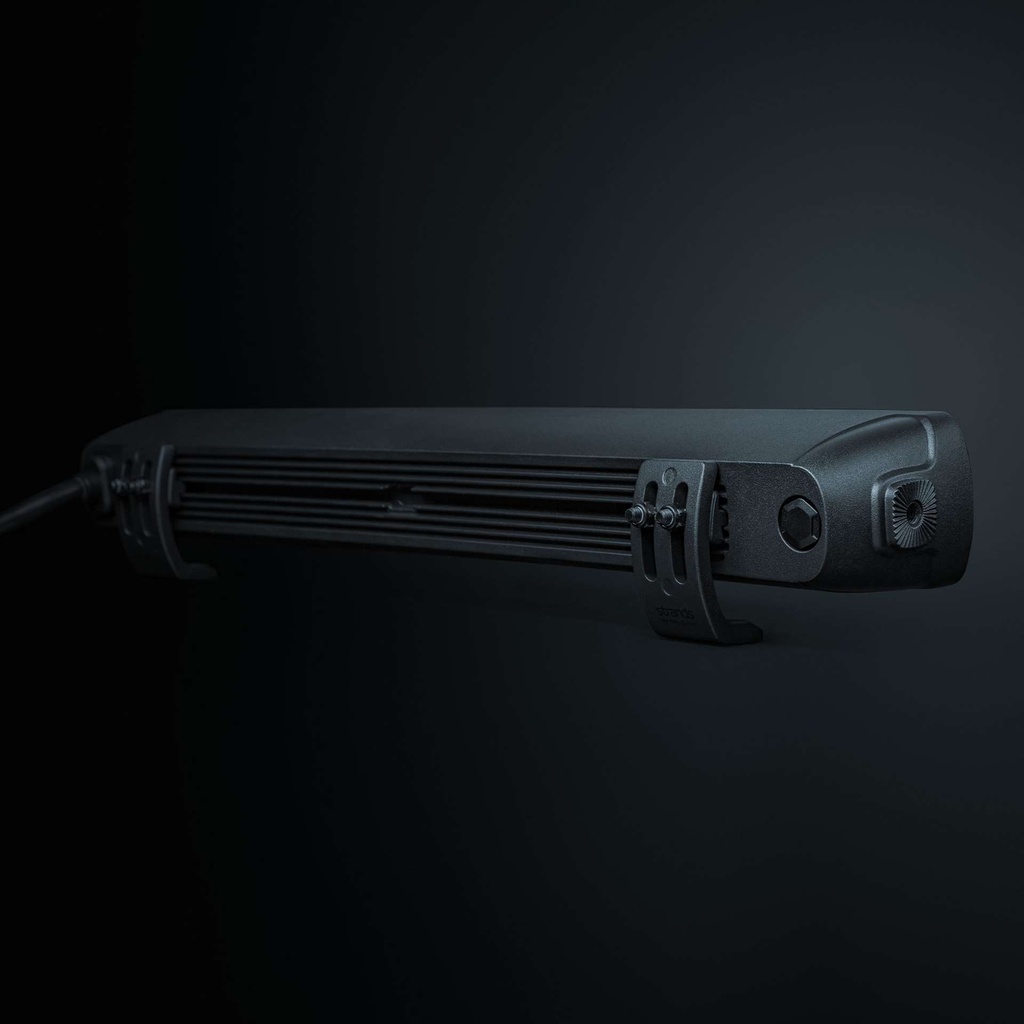

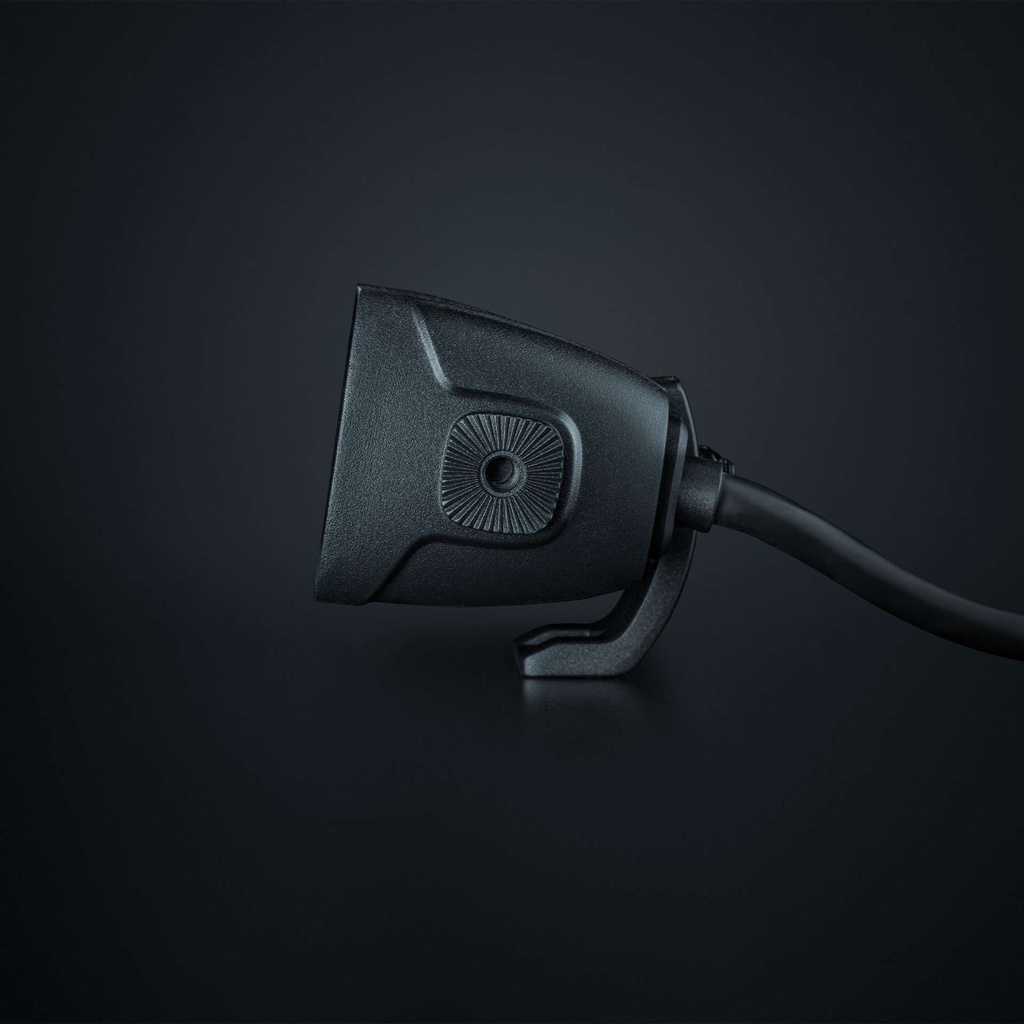

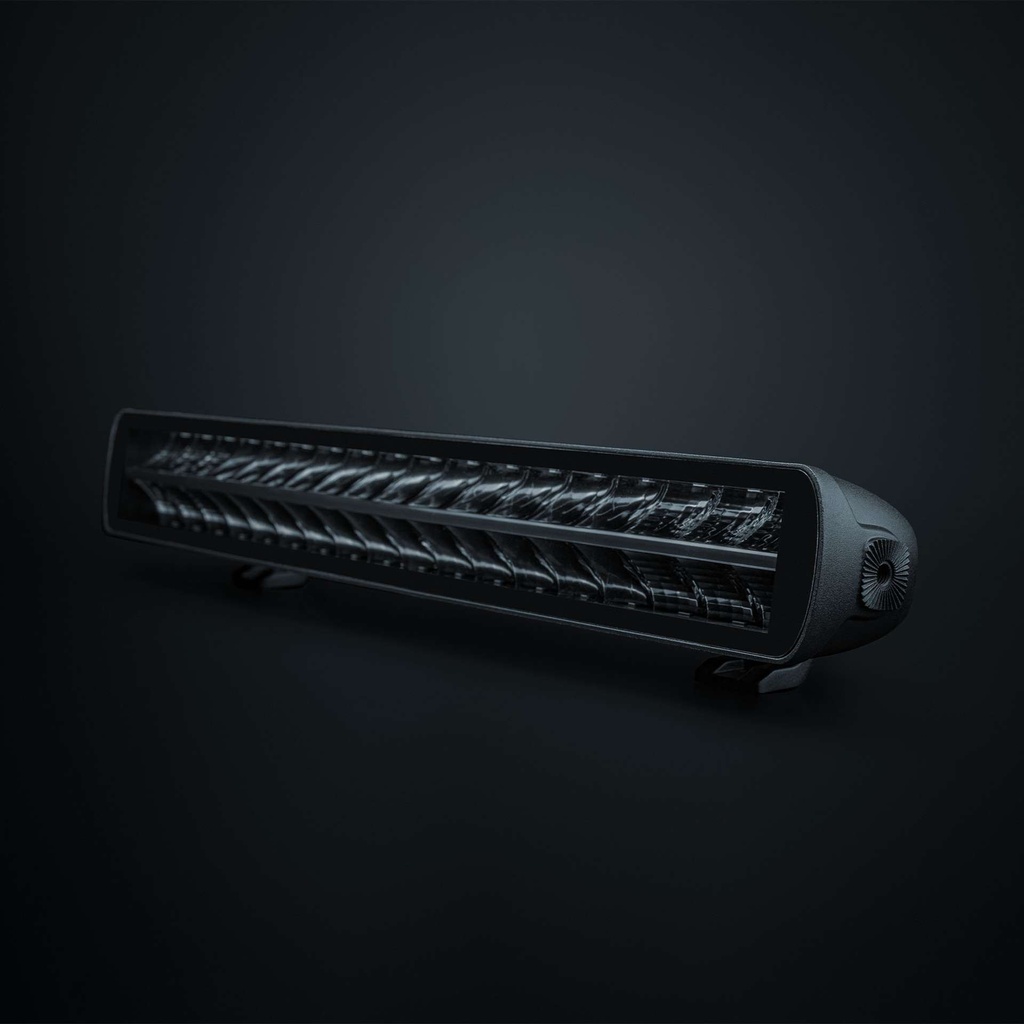

Big Energy DR LED Bar 20" - Curved

Experience uncompromising performance with the Big Energy 20" double row LED bar. Delivering an impressive 25,500 actual lumens and a beam distance exceeding 700 meters in Xperience mode, this LED bar is engineered for drivers who demand maximum visibility. For everyday road use, the E-approved mode (R148/R149, reference number 20) provides a compliant beam pattern that performs exceptionally well in rain, snow, and fog by reducing glare. A crisp 5700 K color temperature ensures outstanding clarity and contrast.

Maximum light output and long-range visibility

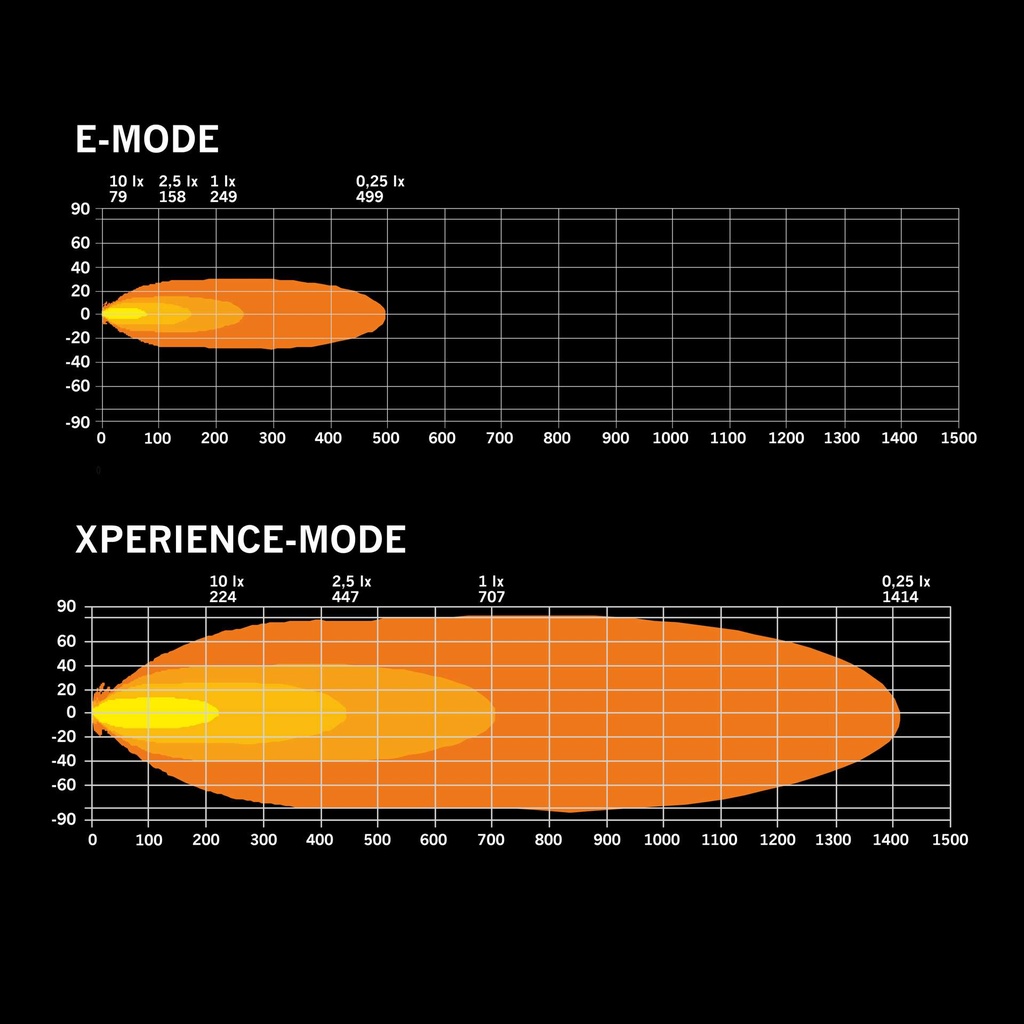

Developed with pure performance in mind, the Big Energy 20" LED Bar produces 25,500 actual lumens in Xperience mode, projecting light more than 700 meters ahead. The combination of high output and a well-balanced beam pattern delivers excellent forward visibility while improving awareness of the surrounding road environment.

In E-approved mode, the light output is optimized for legal road use while maintaining excellent performance during adverse weather conditions where excessive brightness can create unwanted reflections.

Key performance features:

• 25,500 actual lumens – Exceptional light output for demanding driving conditions.
• 700+ meter beam distance – Extended visibility at high speeds and on unlit roads.
• 5700 K color temperature – Sharp, natural white light for enhanced contrast and reduced eye strain.
• R148/R149 E-approved mode – Road-legal performance with reference number 20.

Designed to complement modern vehicles

The gently curved profile follows the natural contours of modern vehicle front ends, creating an integrated appearance without compromising performance. Built-in white and amber position lights allow you to customize the look to match your vehicle and personal preferences.

Lighting options:

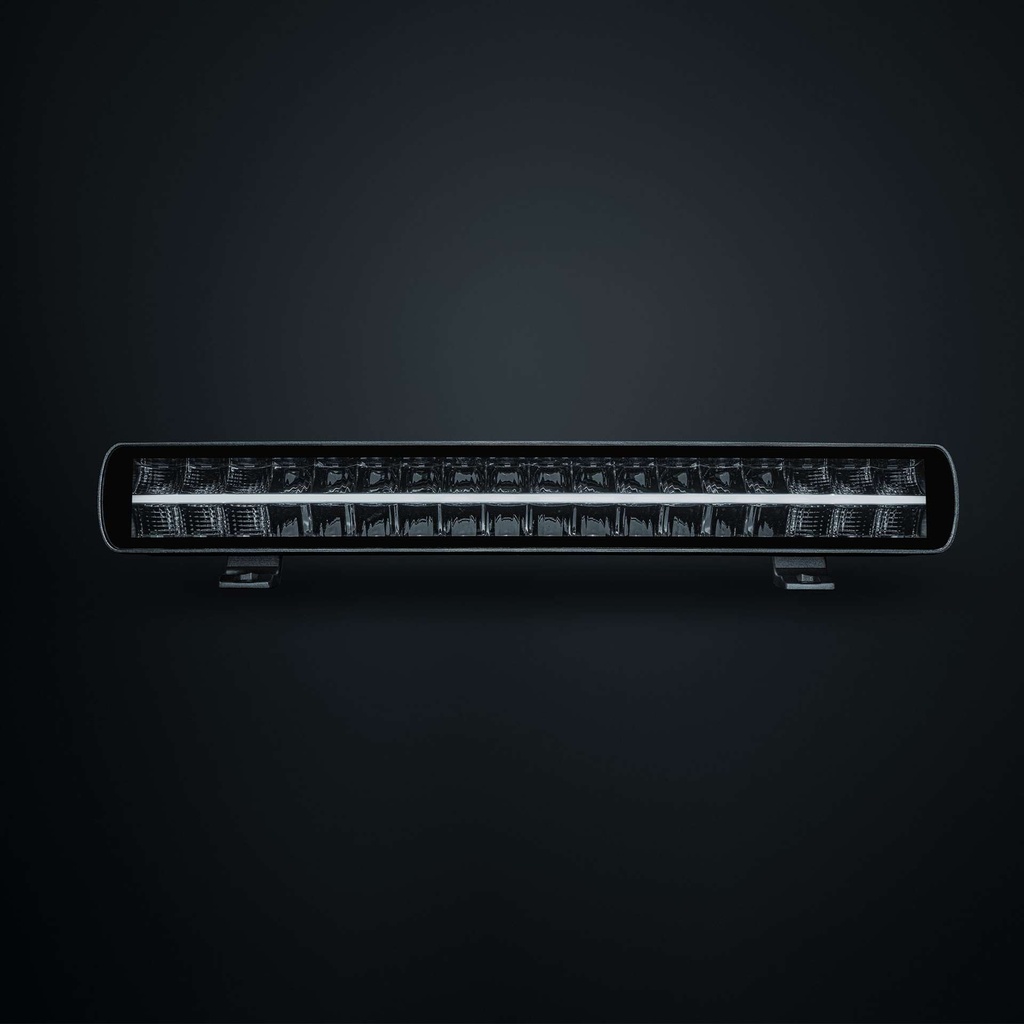

• White position light – Clean and modern appearance.

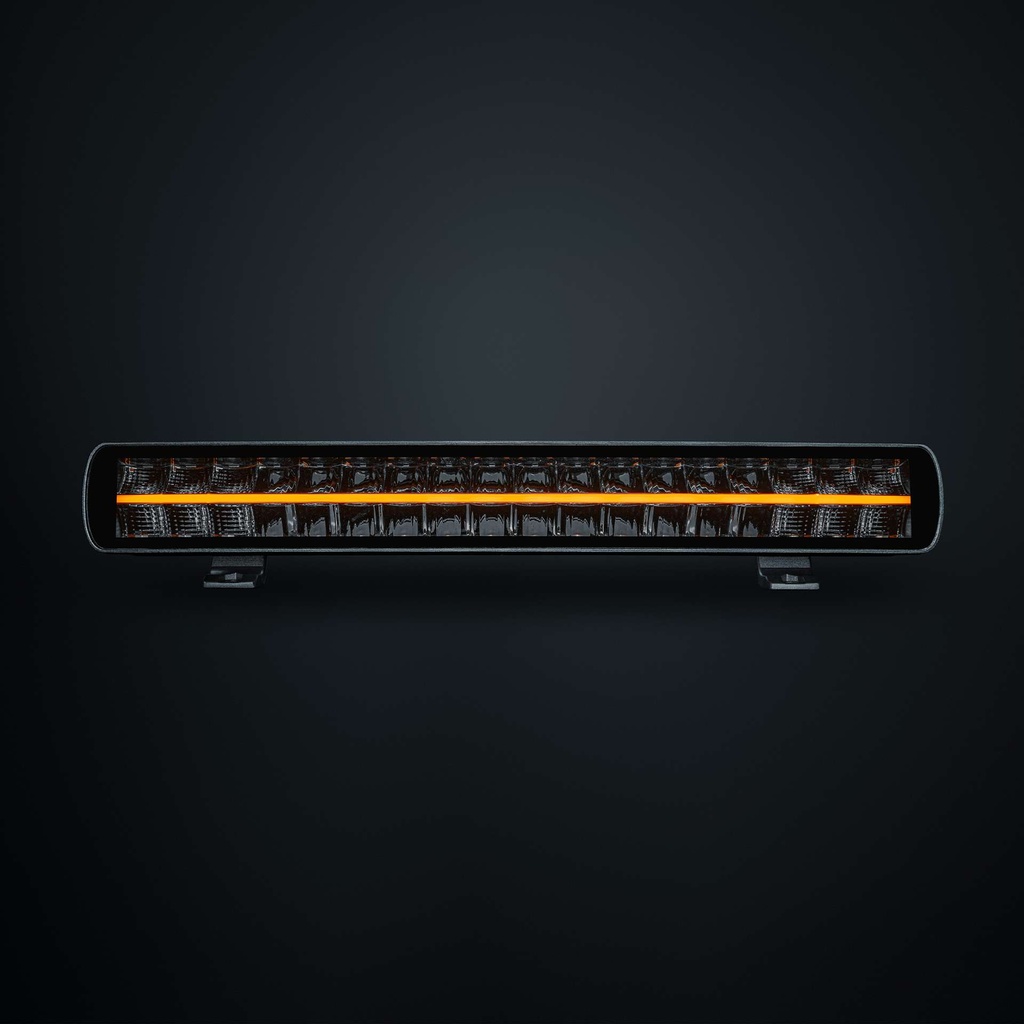

• Amber position light – Distinctive styling with enhanced visibility.

Integrated electronics for simplified installation

To reduce wiring complexity and speed up installation, the Big Energy LED Light Bar is equipped with an integrated relay. The package includes hanging brackets, mounting hardware, and installation accessories, making setup straightforward and secure.

A 2.5-meter cable is included for flexible installation. For seamless connection to an XBB system, the Strands Pro XBB Wiring Kit (Art. No. 907003) is recommended. The kit simplifies installation and includes a dedicated position light control button mounted in the engine compartment, allowing easy switching between position light functions.

Built for demanding environments

Constructed to withstand harsh weather, road debris, and demanding daily use, the Big Energy LED Light Bar features an IP69K rating, one of the highest levels of protection available against water and dust ingress. This ensures reliable performance in extreme operating conditions, whether on highways, work vehicles, or off-road adventures.

Durability highlights:

• IP69K protection rating – Maximum resistance to water, dust, and harsh environments.
• Robust construction – Designed for long-term reliability.
• Integrated relay – Reduced installation complexity and improved system durability.

Warranty

For added peace of mind, the Big Energy LED Light Bar is backed by Strands' 3-year function warranty, ensuring dependable performance mile after mile.
