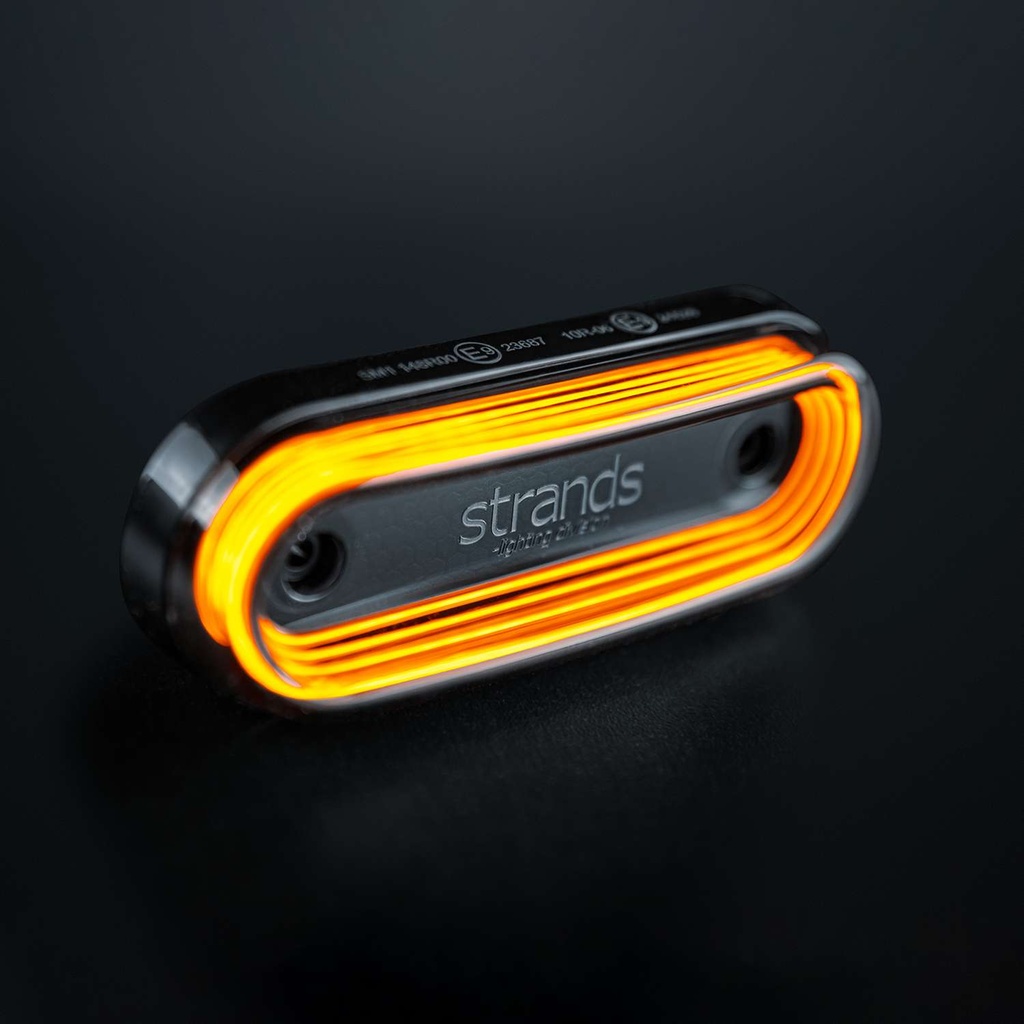

FOR9T GRAVITY Side Marker | Amber
Side Marker Light with Smoked Lens
10-40V | 2.5W | IP67
Dim: L115 x H41 x D23,2mm
E-approved R148 ECE R10
250cm cable
Description:
The FOR9T Gravity (Part No. 850456) is a unique new position light and side marker. It has an oval shape and a distinctive style. It’s made from durable materials and guaranteed to be a long-lived, corrosion-free product. It’s IP-rated IP67 to resist dirt, water, and salt, and is covered by Strands’ 3-year function warranty. The Gravity is used with 10-40 V DC, and consumes only 2,5 W. Thanks to the 2,5 m cable, you’ll have plenty of reach during installation. It measures 11,5 cm long, 4 cm deep, with 75 mm CC. Gravity can also be installed using a hanging bracket (Part No. 850450). To suit all drivers, it’s E-approved according to R148. The Gravity is available in white, red, and amber, perfectly matching all lights in the FOR9T range. The FOR9T series combines functionality and technology with an unexpected design, resulting in a unique look that offers a new, captivating appearance.
- Voltage 10-40V DC
- Theoretical effect 3,5W
- Consumption 2,5W
- Functions Side marker
- Connection Cable
- Cable length 2500mm
- Color housing Black
- Color lens Dark
- Color LED´s Amber
- Material housing/chassi ABS
- Material lens PMMA
- Length 115mm
- Depth 23,2mm
- Height 41mm
- CC 75mm
- Weight 0,135kg
- IP-class IP67
- Operating temperature -30 - +65°C
- E-approved Yes
- According to regulation ECE R148
- EMC ECE R10
